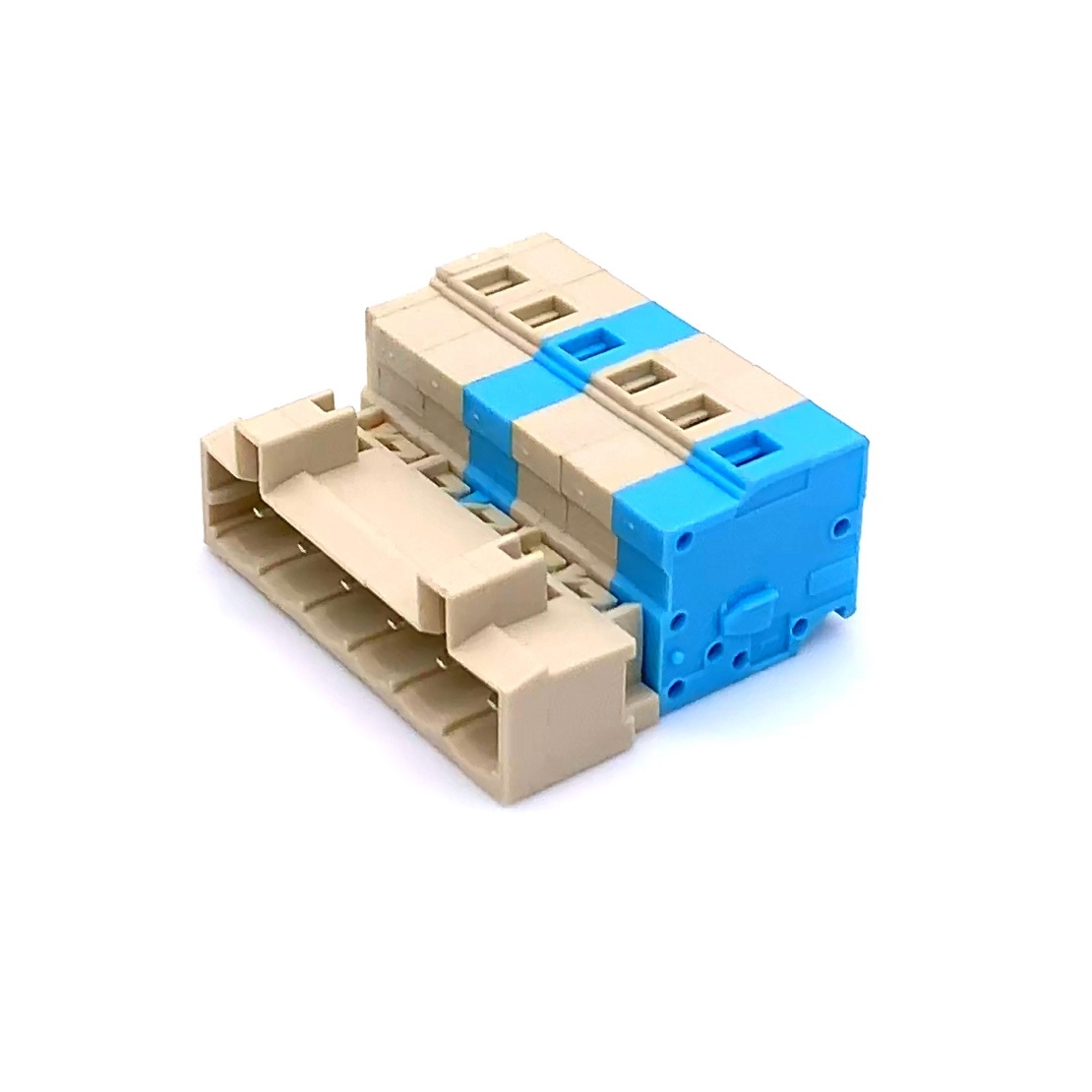

Electrical Plug Type Connector

Electrical Plug Type Connector

Quantity:
  • YE7340-500
  • DERKS


YE7340-500

Electrical Specifications

Square needle

Brass nickel plate

Rated Voltage

400V

Plastic Parts

PA66,UL94V-0

Rated Current

16A

Screw

M3,STEEL WITH ZIN

Contact resistance

20MΩ

Color

White

Insulation resistance

5000 MΩ DC500V

Working Conditions

Insulation withstand voltage

AC2000V/1Min

Operation temperature

-40°C ~150°C

Wire range

28-12AWG 2.5MM2

Instantaneous temperature

250°C  5SEC

Stripping Length

5-7MM


YE7340-500

Board to board style Electrical Plug Type Connector are simply structured and used in printed circuit board of electronic devices.Using copper alloy of good elasticity devices,using copper alloy of good elasticity and high conductivity with externally silver for the purpose of low contact resistance and anti-corrosion and being made of ROHS compliant,impact resistant and UL94 V0 flame class engineering thermoplastics.For use in combination,they can be welded one end on the PC board and the other end matching with other products.

Features:

Made of Nylon PA66 UL94V-0
