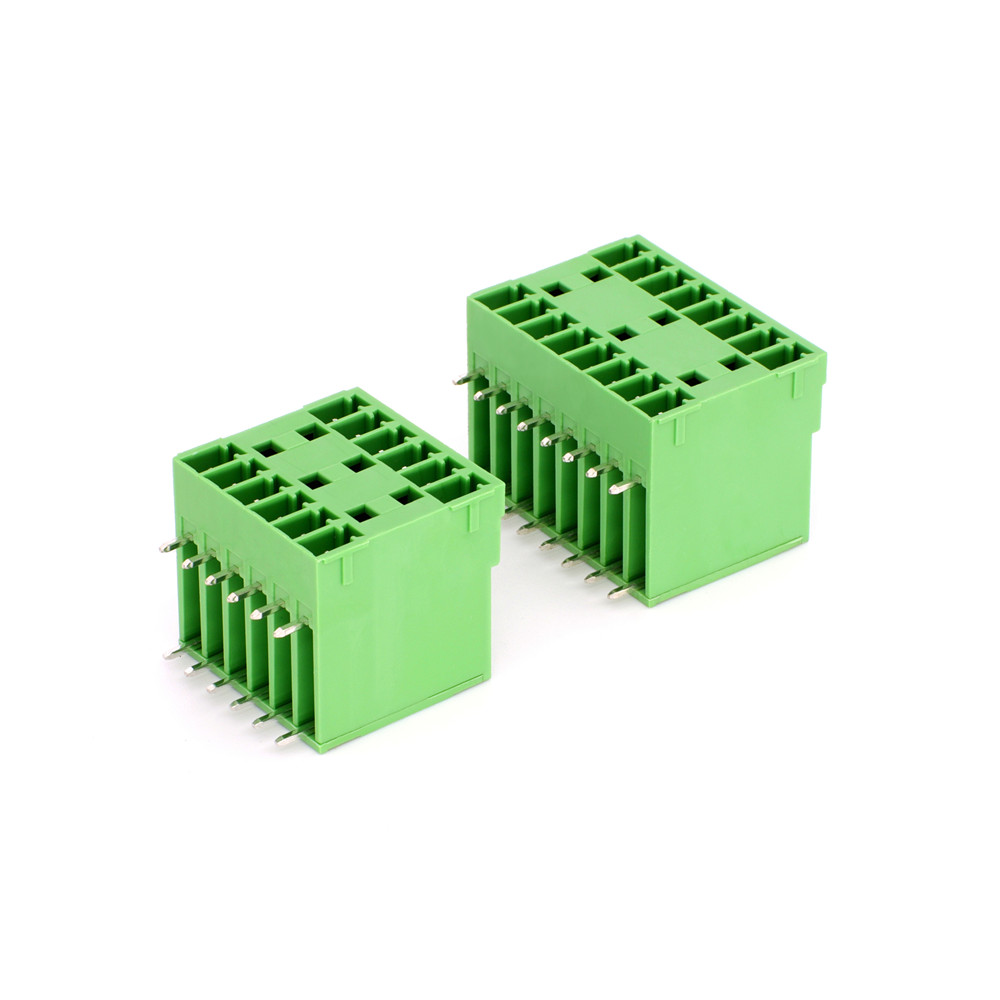

Name: 3.81mm Pitch Double Deck Pcb Pluggable Terminal Block Header with Right Angled Pin
Brand: DERKS
Rating: 5.0 (50 reviews)

+86-18958977175 sales@cnderks.com

You are here: Home » Products » Pluggable terminal block-YE » 3.81mm Pitch Double Deck Pcb Pluggable Terminal Block Header with Right Angled Pin

Electrical Specifications
Square needle	Brass nickel plate	Rated Voltage	300V
Plastic Parts	PA66,UL94V-0	Rated Current	12A
Screw	M3,STEEL WITH ZIN	Contact resistance	20MΩ
Color	Green	Insulation resistance	5000 MΩ DC500V
Working Conditions		Insulation withstand voltage	AC2000V/1Min
Operation temperature	-40°C ~150°C	Wire range	28-12AWG 2.5MM²
Instantaneous temperature	250°C 5SEC	Stripping Length	5-7MM

Electrical Specifications
Square needle	Brass nickel plate	Rated Voltage	300V
Plastic Parts	PA66,UL94V-0	Rated Current	12A
Screw	M3,STEEL WITH ZIN	Contact resistance	20MΩ
Color	Green	Insulation resistance	5000 MΩ DC500V
Working Conditions		Insulation withstand voltage	AC2000V/1Min
Operation temperature	-40°C ~150°C	Wire range	28-12AWG 2.5MM²
Instantaneous temperature	250°C 5SEC	Stripping Length	5-7MM

DERKS Terminal Block Advantage
DERKS Terminal Block				COMMON terminal blocks
PA66 UL94-0 new material				recycle material,PVC etc
pure brass				thin copper with impurity,lighter weight
automatic production				manual outsourcing
skilled inspection workers				no inspection team
Stable supply chain to lower cost				material from different suppliers
flame restardant material to V0 level				low flame restardant grade

DERKS Terminal Block Advantage
DERKS Terminal Block				COMMON terminal blocks
PA66 UL94-0 new material				recycle material,PVC etc
pure brass				thin copper with impurity,lighter weight
automatic production				manual outsourcing
skilled inspection workers				no inspection team
Stable supply chain to lower cost				material from different suppliers
flame restardant material to V0 level				low flame restardant grade

Product Category

3.81mm Pitch Double Deck Pcb Pluggable Terminal Block Header with Right Angled Pin
