Material and plate | Electrical Specifications | ||
Crimping frame | Brass nickel plate | Rated Voltage | 300V |
Plastic Parts | PA66,UL94V-0 | Rated Current | 12A |
Screw | M2,steel zin plate | Contact resistance | 20MΩ |
Color | Green | Insulation resistance | 5000 MΩ DC500V |
Working Conditions | Insulation withstand voltage | AC2000V/1Min | |
Operation temperature | -40°C ~150°C | Wire range | 28-12AWG 2.5MM2 |
Instantaneous temperature | 250°C 5SEC | Stripping Length | 3-5MM |
Material and plate | Electrical Specifications | ||
Crimping frame | Brass nickel plate | Rated Voltage | 300V |
Plastic Parts | PA66,UL94V-0 | Rated Current | 12A |
Screw | M2,steel zin plate | Contact resistance | 20MΩ |
Color | Green | Insulation resistance | 5000 MΩ DC500V |
Working Conditions | Insulation withstand voltage | AC2000V/1Min | |
Operation temperature | -40°C ~150°C | Wire range | 28-12AWG 2.5MM2 |
Instantaneous temperature | 250°C 5SEC | Stripping Length | 3-5MM |

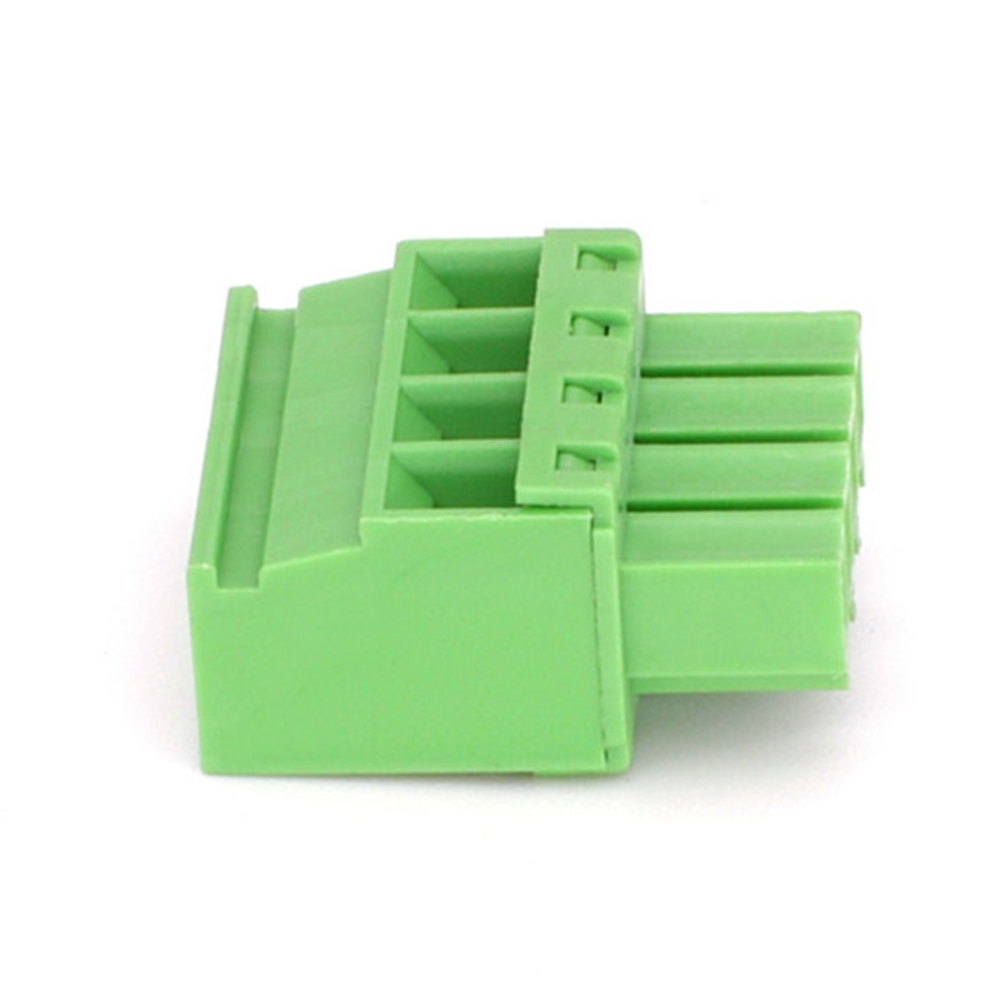

YC070-381 Plug in Male Terminal Block Connector
Related female plug in termnal block YE430-381
Related female plug in termnal block YE440-381
YC070-381 Plug in Male Terminal Block Connector
Related female plug in termnal block YE430-381
Related female plug in termnal block YE440-381
3.81mm Electrical Pluggable Type Terminal Block are available in horizontal,vertical and front wire entry designs,to meet multiple design requirements. 3.81mm Electrical Pluggable Type Terminal Block creates application requiring high reliable interconnection with the flexibility of simplified modifications and installation.This series provide the screw cramping and spring clamp connections and also extends the customs’ choice of higher density connection products from DERKS.
DERKS Terminal Block Advantage | ||||||||
DERKS Terminal Block | COMMON terminal blocks | |||||||
PA66 UL94-0 new material | recycle material,PVC etc | |||||||
pure brass | thin copper with impurity,lighter weight | |||||||
automatic production | manual outsourcing | |||||||
skilled inspection workers | no inspection team | |||||||
Stable supply chain to lower cost | material from different suppliers | |||||||
flame restardant material to V0 level | low flame restardant grade |
3.81mm Electrical Pluggable Type Terminal Block are available in horizontal,vertical and front wire entry designs,to meet multiple design requirements. 3.81mm Electrical Pluggable Type Terminal Block creates application requiring high reliable interconnection with the flexibility of simplified modifications and installation.This series provide the screw cramping and spring clamp connections and also extends the customs’ choice of higher density connection products from DERKS.
DERKS Terminal Block Advantage | ||||||||
DERKS Terminal Block | COMMON terminal blocks | |||||||
PA66 UL94-0 new material | recycle material,PVC etc | |||||||
pure brass | thin copper with impurity,lighter weight | |||||||
automatic production | manual outsourcing | |||||||
skilled inspection workers | no inspection team | |||||||
Stable supply chain to lower cost | material from different suppliers | |||||||
flame restardant material to V0 level | low flame restardant grade |
