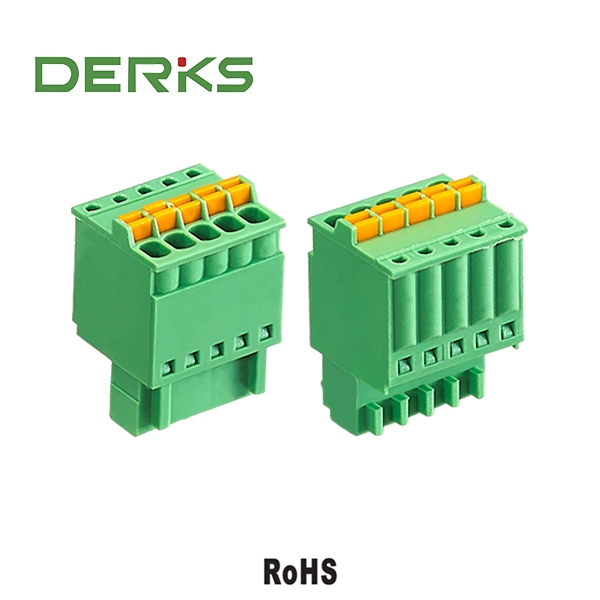

Pluggable Spring Screwless Terminal Block 2.50

Rated Current 4A
Rated Voltage 100V

Quantity:
  • YC030-250
  • DERKS


Material   and plate

Electrical   Specifications

Crimping   frame

Brass   nickel plate

Rated   Voltage

100V

Plastic   Parts

PA66,UL94V-0

Rated   Current

4A

spring

Stainless   steel

Contact   resistance

20MΩ

Color

Green

Insulation   resistance

5000   MΩ DC500V

Working   Conditions

Insulation   withstand voltage

AC2000V/1Min

Operation   temperature

-40°C ~150°C

Wire   range

28-12AWG   2.5MM2

Instantaneous   temperature

250°C  5SEC

Stripping   Length

3-5MM


YC030-250

Pluggable Spring  Screwless Terminal Block 2.50 are available in horizontal,vertical and front wire entry designs,to meet multiple design requirements. Pluggable Spring  Screwless Terminal Block 2.50 creates application requiring high reliable interconnection with the flexibility of simplified modifications and installation.This series provide the screw cramping and spring clamp connections and also extends the customs’ choice of higher density connection products from DERKS.
