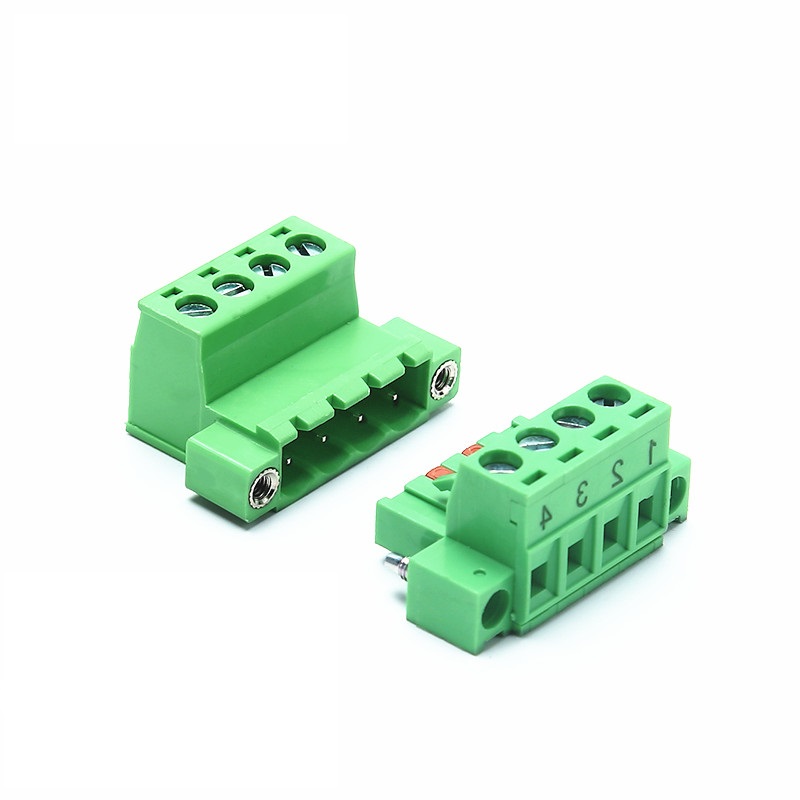

Name: 5.08mm Pitch 2-24Pin Pcb Pluggable Temrinal Block Plug with screw lock and Socket with flange
Brand: DERKS
Rating: 5.0 (86 reviews)

You are here: Home » Products » Pluggable Female and Male Terminal Blocks » 5.08mm Pitch 2-24Pin Pcb Pluggable Temrinal Block Plug with screw lock and Socket with flange

Electrical Specifications
Square needle	Brass nickel plate	Rated Voltage	300V
Plastic Parts	PA66,UL94V-0	Rated Current	16A
Screw	M3,STEEL WITH ZIN	Contact resistance	20MΩ
Color	Green	Insulation resistance	5000 MΩ DC500V
Working Conditions		Insulation withstand voltage	AC2000V/1Min
Operation temperature	-40°C ~105°C	Wire range	28-12AWG 2.5MM²
Instantaneous temperature	250°C 5SEC	Stripping Length	5-7MM

Electrical Specifications
Square needle	Brass nickel plate	Rated Voltage	300V
Plastic Parts	PA66,UL94V-0	Rated Current	16A
Screw	M3,STEEL WITH ZIN	Contact resistance	20MΩ
Color	Green	Insulation resistance	5000 MΩ DC500V
Working Conditions		Insulation withstand voltage	AC2000V/1Min
Operation temperature	-40°C ~105°C	Wire range	28-12AWG 2.5MM²
Instantaneous temperature	250°C 5SEC	Stripping Length	5-7MM
