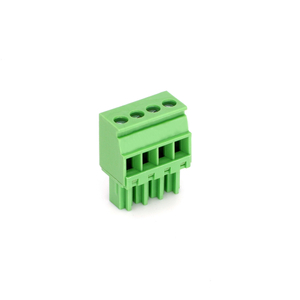

3.50mm Pitch Push in Connection Spring Clamp Pcb Pluggable Screwless Terminal Block with Super Thin Wall
Feature:
3.50mm Pin Space
2~24 Pin for option
Push in connection
Material and plate | Electrical Specifications | ||
Crimping frame | Brass nickel plate | Rated Voltage | 250V |
Plastic Parts | PA66,UL94V-0 | Rated Current | 8A |
Screw | M2,steel zin plate | Contact resistance | ＜20mΩ |
Color | Green | Insulation resistance | 500MΩ |
Working Conditions | Insulation withstand voltage | AC2000V/1Min | |
Operation temperature | -40°C ~105°C | Wire range | 28-16AWG 2.5MM2 |
Instantaneous temperature | 250°C 5SEC | Stripping Length | 5-7MM |
3.50mm Pitch Push in Connection Spring Clamp Pcb Pluggable Screwless Terminal Block with Super Thin Wall
Feature:
3.50mm Pin Space
2~24 Pin for option
Push in connection
Material and plate | Electrical Specifications | ||
Crimping frame | Brass nickel plate | Rated Voltage | 250V |
Plastic Parts | PA66,UL94V-0 | Rated Current | 8A |
Screw | M2,steel zin plate | Contact resistance | ＜20mΩ |
Color | Green | Insulation resistance | 500MΩ |
Working Conditions | Insulation withstand voltage | AC2000V/1Min | |
Operation temperature | -40°C ~105°C | Wire range | 28-16AWG 2.5MM2 |
Instantaneous temperature | 250°C 5SEC | Stripping Length | 5-7MM |
