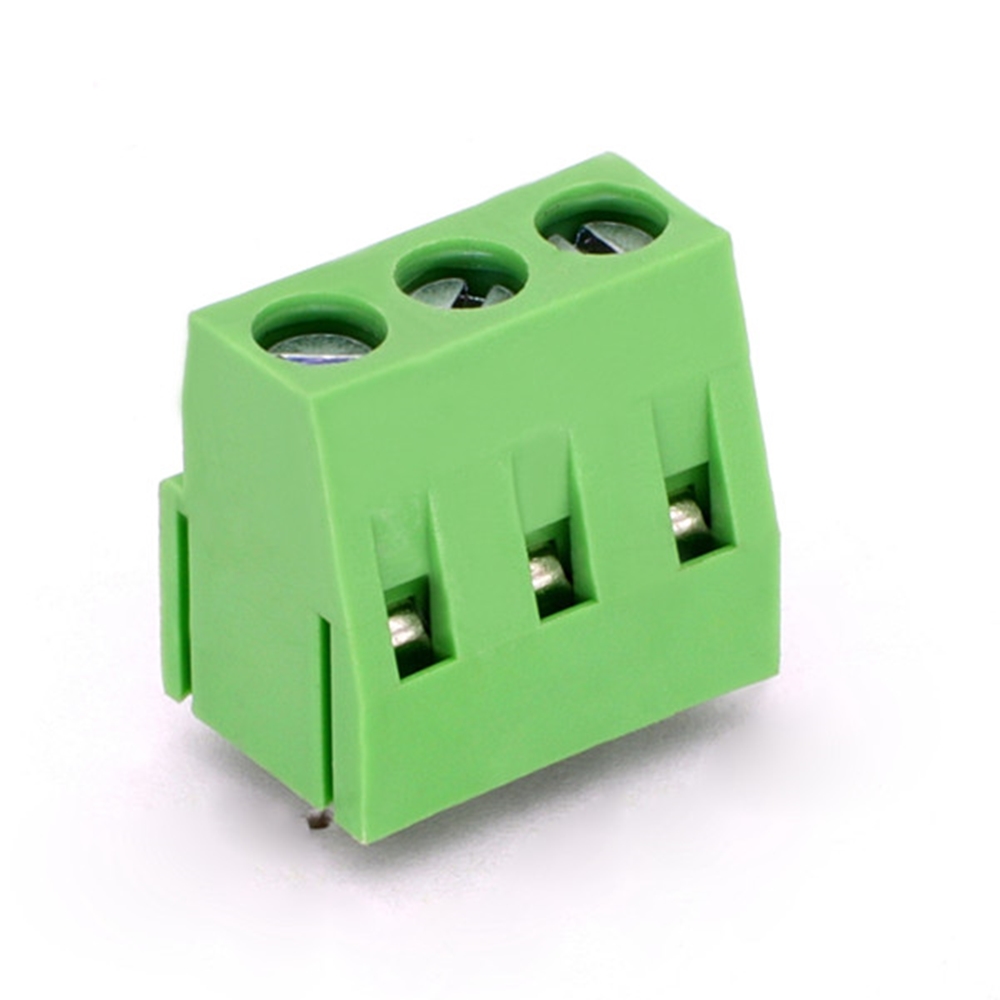

Name: 5.08 Pitch 2 3 Pins PCB Screw Terminal Block,Pcb Mount Terminal Block
Brand: DERKS
Rating: 5.0 (67 reviews)

+86-18958977175 sales@cnderks.com

You are here: Home » Products » PCB screw terminal block » 5.08 Pitch 2 3 Pins PCB Screw Terminal Block,Pcb Mount Terminal Block

Material and plate		Electrical Specifications
Crimping frame	Brass nickel plate	Rated Voltage	300V
Plastic Parts	PA66,UL94V-0	Rated Current	16A
Screw	M2,steel zin plate	Contact resistance	20MΩ
Color	Green	Insulation resistance	5000 MΩ DC500V
Working Conditions		Insulation withstand voltage	AC2000V/1Min
Operation temperature	-40°C ~105°C	Wire range	28-12 AWG 2.5MM²
Instantaneous temperature	250°C 5SEC	Stripping Length	5-7MM

Material and plate		Electrical Specifications
Crimping frame	Brass nickel plate	Rated Voltage	300V
Plastic Parts	PA66,UL94V-0	Rated Current	16A
Screw	M2,steel zin plate	Contact resistance	20MΩ
Color	Green	Insulation resistance	5000 MΩ DC500V
Working Conditions		Insulation withstand voltage	AC2000V/1Min
Operation temperature	-40°C ~105°C	Wire range	28-12 AWG 2.5MM²
Instantaneous temperature	250°C 5SEC	Stripping Length	5-7MM

DERKS Terminal Block Advantage
DERKS Terminal Block				COMMON terminal blocks
PA66 UL94-0 new material				recycle material,PVC etc
pure brass				thin copper with impurity,lighter weight
automatic production				manual outsourcing
skilled inspection workers				no inspection team
Stable supply chain to lower cost				material from different suppliers
flame restardant material to V0 level				low flame restardant grade

DERKS Terminal Block Advantage
DERKS Terminal Block				COMMON terminal blocks
PA66 UL94-0 new material				recycle material,PVC etc
pure brass				thin copper with impurity,lighter weight
automatic production				manual outsourcing
skilled inspection workers				no inspection team
Stable supply chain to lower cost				material from different suppliers
flame restardant material to V0 level				low flame restardant grade
