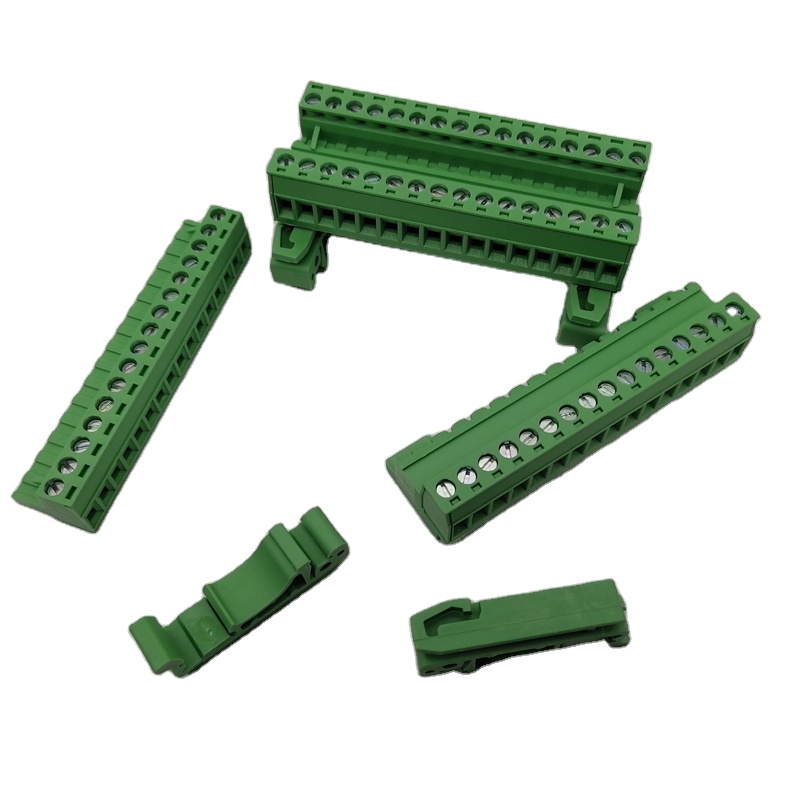

5.08mm Pitch Screw Clamp 35mm Din Rail Male and Female Terminal Blocks with Connection Feet

5.08mm Pitch Pluggable Male and Female Terminal Block
Quantity:
  • YE3430-508,YC100-508
  • 5.08mm Pitch Screw Clamp Pluggable terminal blocks YC100-508

  • Spacing between positions 5.08mm

  • UL rating, 28 to 12 AWG, 12 amps, 300 volts

  • UL94V0 housingMetal parts all 100% plated

  • Single piece housing, 2 - 24 position

  • Wire entry horizontal to PCB

  • Rising cage

  • RoHS compliant

  • Housing and header polarized

    yc100-508

  • 5.08mm pitch close end horizontal entry pluggable terminal block header YE3430-508

  • Spacing between positions 5.08mm

  • UL rating, 28 to 12 AWG, 12 amps, 300 volts

  • UL94V0 housing

  • Metal parts all 100% plated

  • RoHS compliant

  • Housing and header polarized

  • YE3430-508

  • Technical Parameters

  • Electrical Specifications

    Square Pin

    Brass nickel plate

    Rated Voltage

    300V

    Plastic Parts

    PA66,UL94V-0

    Rated Current

    16A

    Screw

    M3,STEEL WITH ZIN

    Contact resistance

    20MΩ

    Color

    White

    Insulation resistance

    5000 MΩ DC500V

    Working Conditions

    Insulation withstand voltage

    AC2000V/1Min

    Operation temperature

    -40°C ~105°C

    Wire range

    28-12AWG 2.5MM2

    Instantaneous temperature

    250°C  5SEC

    Stripping Length

    5-7MM
