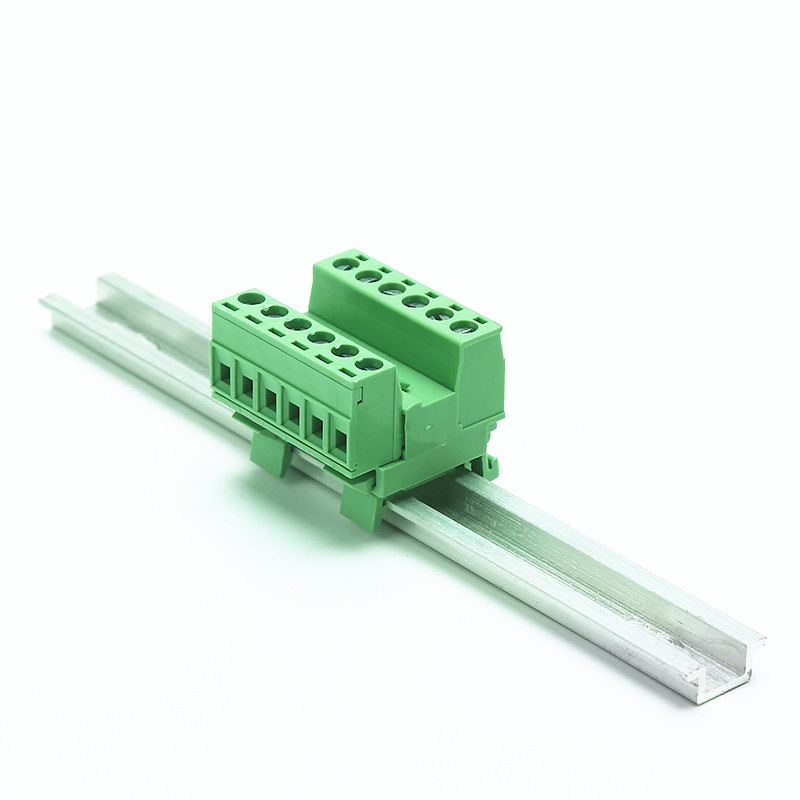

5.08mm Pitch 2-24Pin Pcb Pluggable Male And Female Terminal Block with Foot Match 15mm Din Rail

5.08mm Pitch Pluggable Male and Female Terminal Block
Quantity:
  • YE3430-508,YC100-508,US15
  • DERKS

The Combination contains 3 items:YE3430-508,YC100-508,US15

Electrical Specifications

Square needle

Brass nickel plate

Rated Voltage

300V

Plastic Parts

PA66,UL94V-0

Rated Current

16A

Screw

M3,STEEL WITH ZIN

Contact resistance

20MΩ

Color

Green

Insulation resistance

5000 MΩ DC500V

Working Conditions

Insulation withstand voltage

AC2000V/1Min

Operation temperature

-40°C ~105°C

Wire range

28-12AWG 2.5MM2

Instantaneous temperature

250°C  5SEC

Stripping Length

5-7MM

YE3430-508 closed end female terminal block,5.08mm pitch,2-24poles

YE3430-508

YC100-508 Male terminal block,5.08mm pitch,2-24 poles

yc100-508

US15 install foot for 15mm din rail

US15
